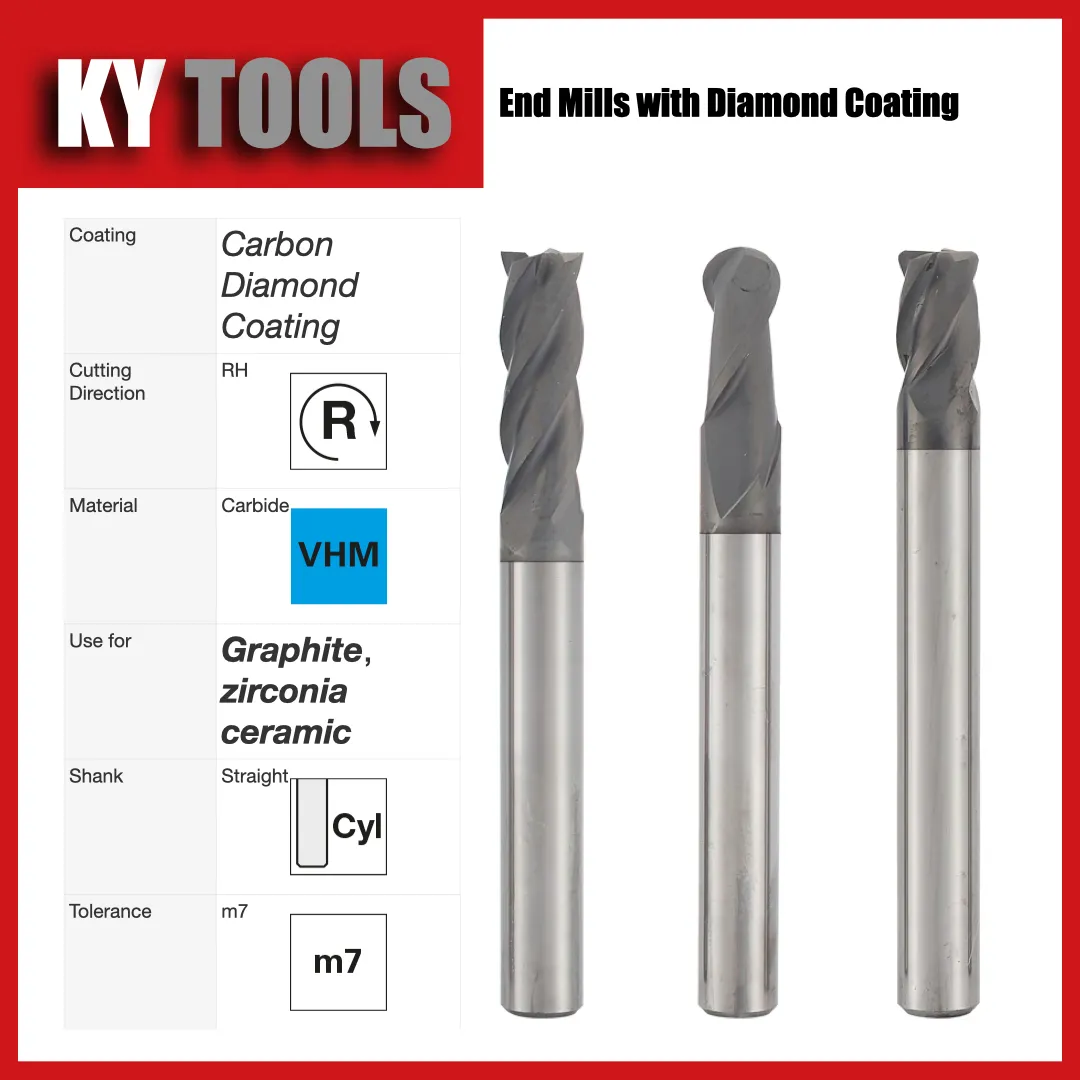

Diamond-coated solid carbide · factory direct
Fourteen graphite-specific end mill families built on a carbide grade selected for strong diamond-coating adhesion. Dense, secure coating and individually inspected cutting geometry help retain edge accuracy in abrasive graphite production.
Coating and edge-retention evidence

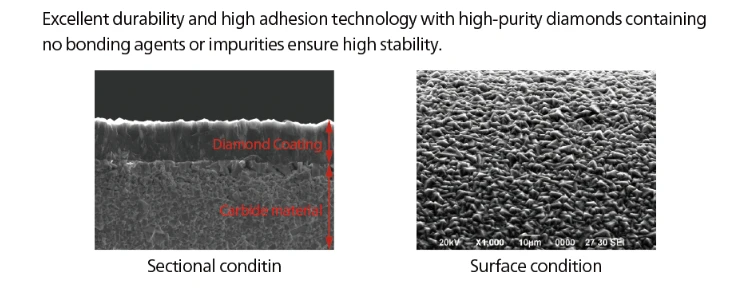

The carbide rod grade is selected for compatibility with diamond deposition. Its surface chemistry and microstructure promote dense diamond nucleation and a firmly bonded coating interface, reducing the risk of premature coating separation.

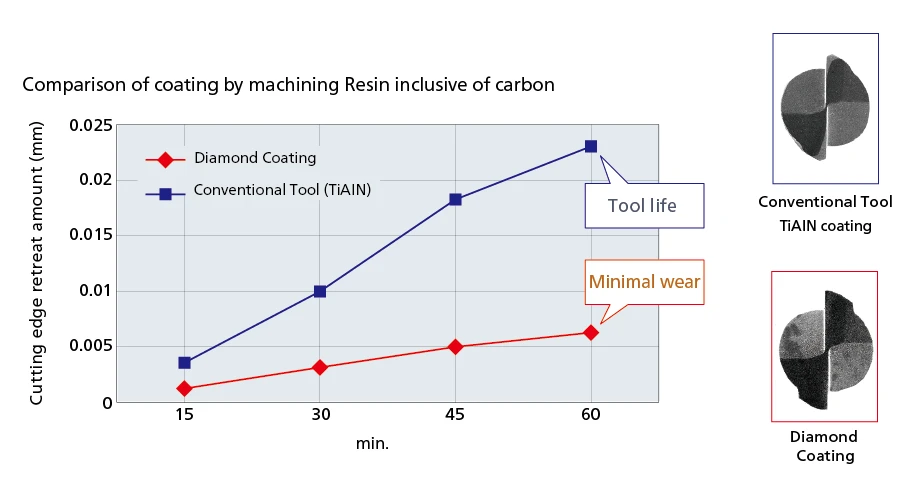

In the supplied carbon-resin machining comparison, edge retreat at 60 minutes is about 0.006 mm with diamond coating versus 0.023 mm with TiAlN. Lower wear helps the cutting edge hold its geometry and machining accuracy for longer.

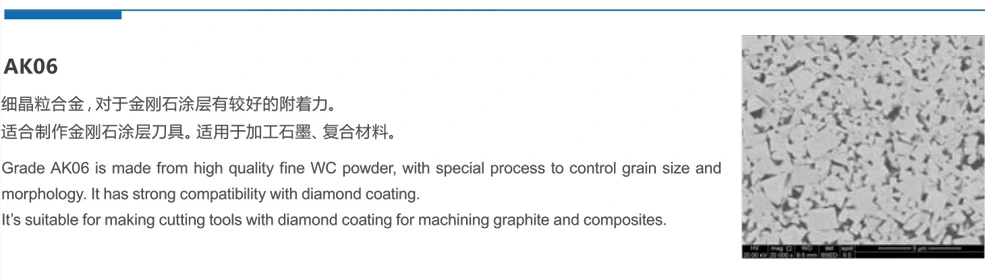

Grade AK06 is made from high-quality fine WC powder using a special process that controls grain size and morphology. Its strong compatibility with diamond coating makes it suitable for cutting tools used to machine graphite and composites.
ZOLLER measurement system

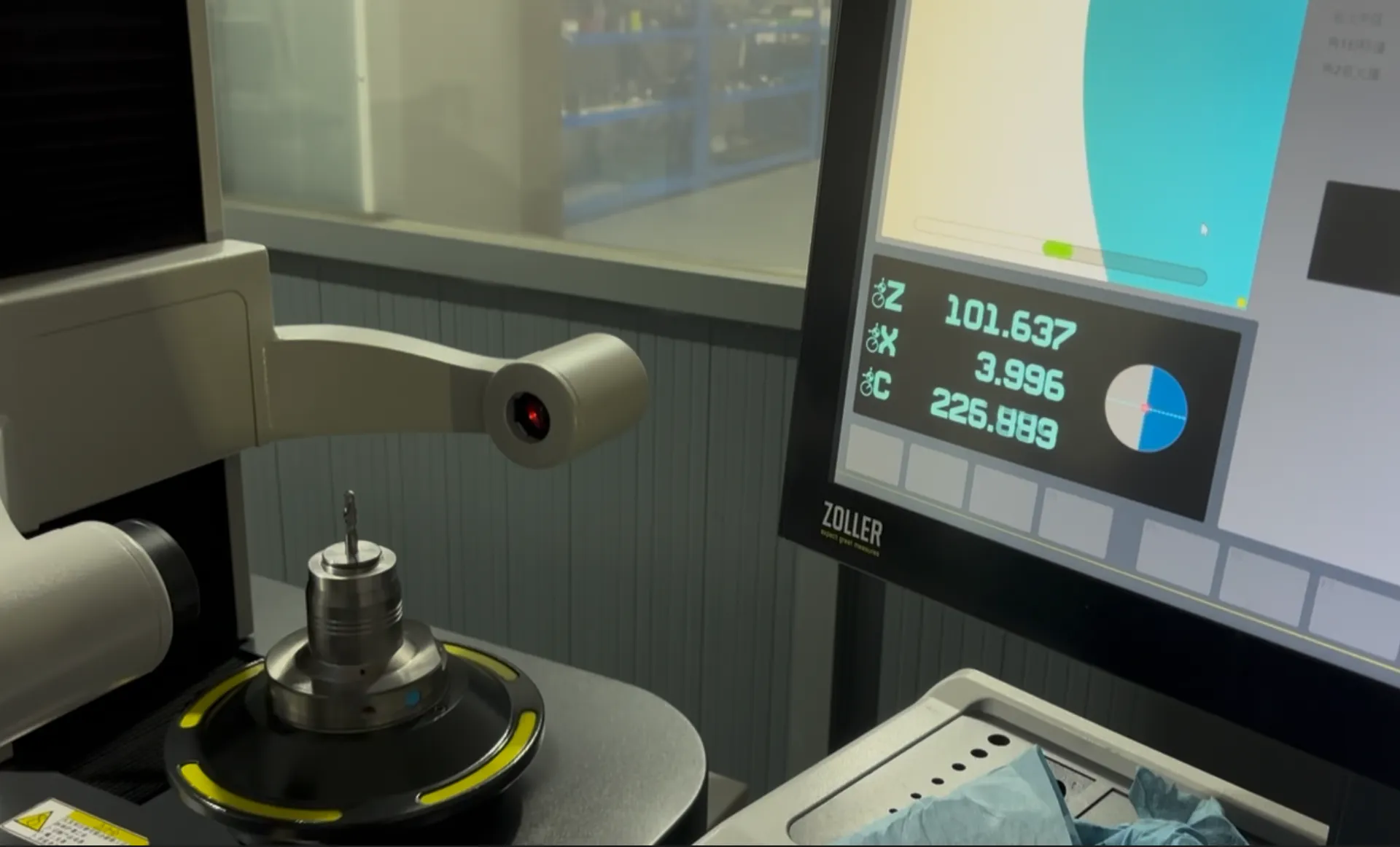

ZOLLER optical measurement verifies cutter diameter, corner radius, cutting geometry, and runout. Every end mill is inspected, and a dimensional report can be supplied for acceptance and traceability. This inspection standard is our practical precision advantage over Korean peers such as JJTOOLS.
14 product families · detailed sizes and prices
Compare ball nose, square end, corner radius, long-shank, and taper-neck series. Each family includes applications, order codes, dimensions, USD reference prices, and selection guidance.

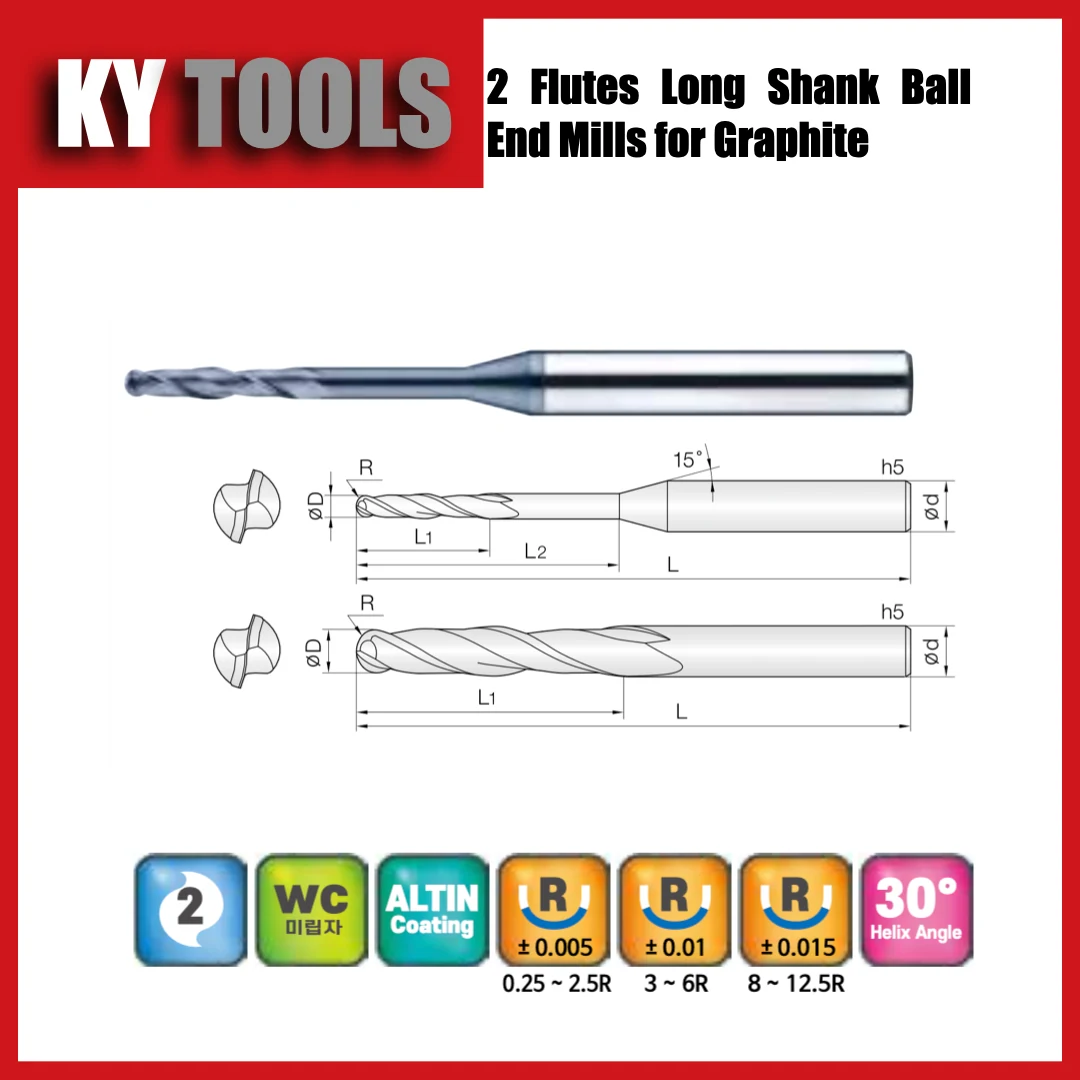

Deep-reach 3D electrode contours, ribs, cavities, and semi-finishing.
| Specification | Order code | USD/pc |
|---|---|---|
| D0.5*R0.25*2FL*50 OAL*4SH*2F | 2GBE 005 020 S04 | $13.40 |
| D0.5*R0.25*2FL*5NL*50 OAL*4SH*2F | 2GBE 005 050 S04 | $13.40 |
| D1*R0.5*5FL*60 OAL*4SH*2F | 2GBE 010 050 S04 | $12.80 |

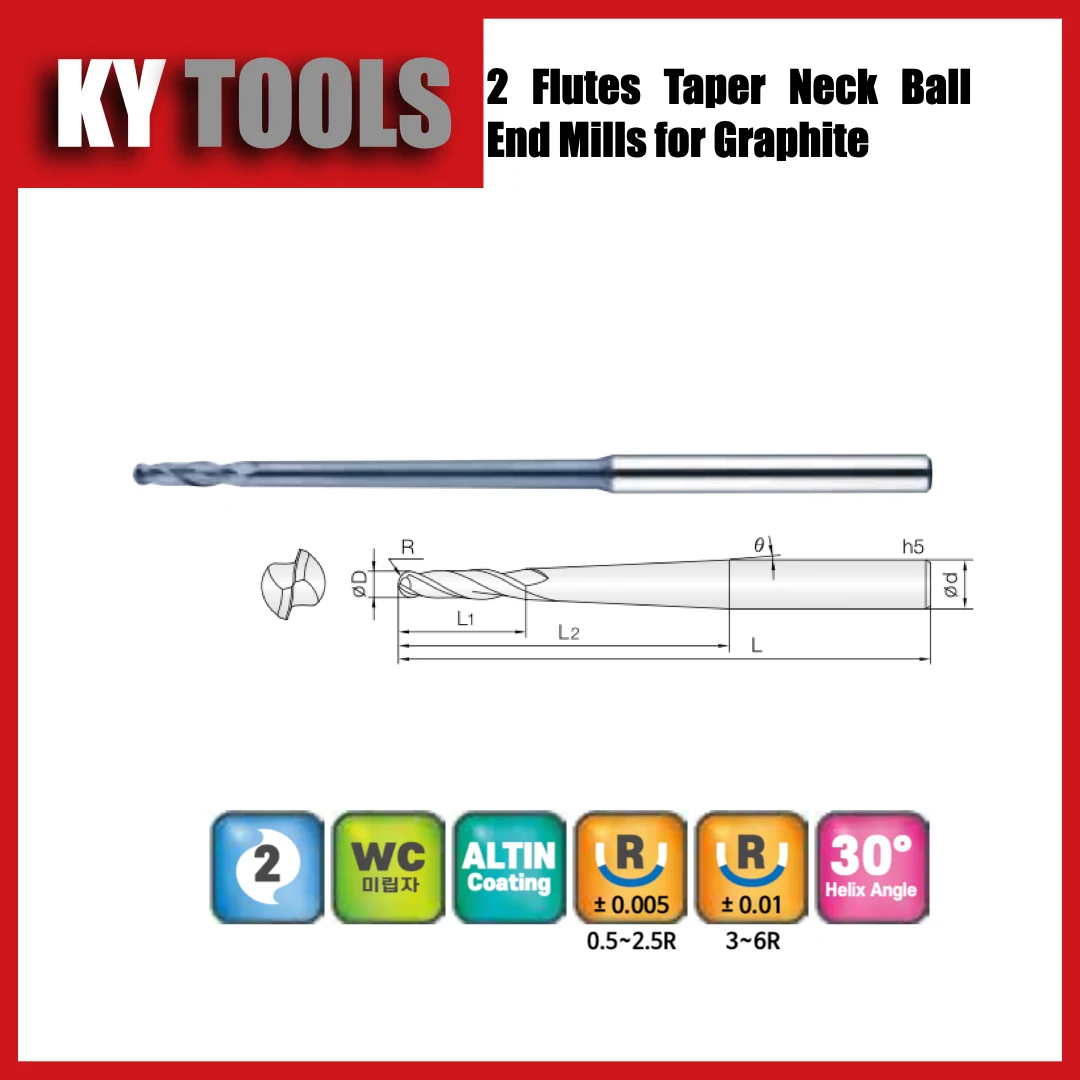

Narrow deep cavities where neck clearance and tool rigidity must be balanced.
| Specification | Order code | USD/pc |
|---|---|---|
| D1*R0.5*4FL*20NL*60 OAL*4SH*2F | 2TGB 010 003 200 | $12.80 |
| D1*R0.5*4FL*30NL*75 OAL*4SH*2F | 2TGB 010 003 300 | $15.40 |
| D1*R0.5*4FL*40NL*90 OAL*4SH*2F | 2TGB 010 003 400 | $19.00 |

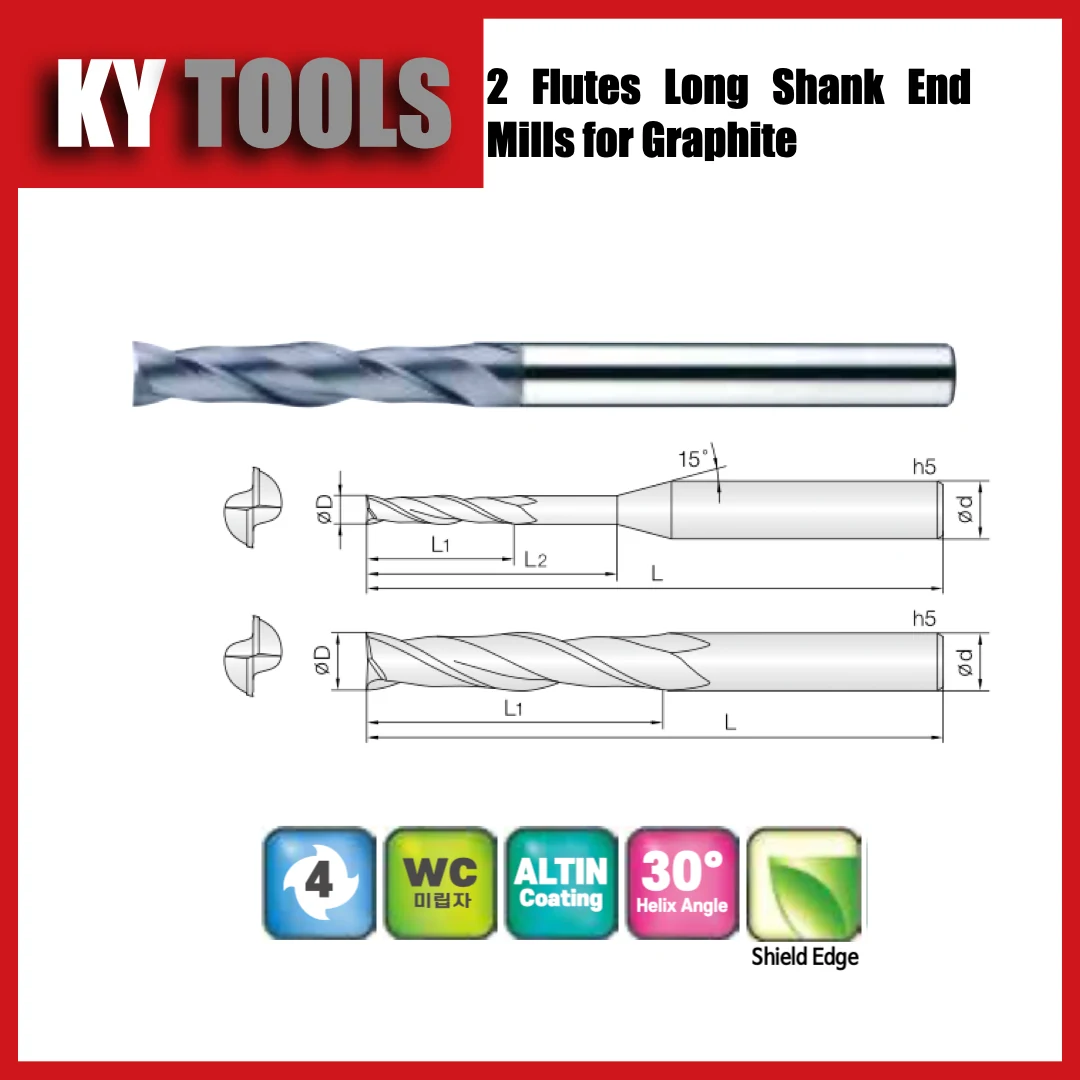

Deep slots, pockets, shoulders, and high-chip-clearance roughing.
| Specification | Order code | USD/pc |
|---|---|---|
| D0.5*2FL*50 OAL*4SH*2F | 2GEM 005 020 S04 | $13.40 |
| D1*5FL*60 OAL*4SH*2F | 2GEM 010 050 S04 | $12.80 |
| D1*5FL*10NL*60 OAL*4SH*2F | 2GEM 010 100 S04 | $12.80 |
Stable side milling and finer finishes in deep graphite features.
| Specification | Order code | USD/pc |
|---|---|---|
| D3*10FL*100 OAL*6SH*4F | 4GEM 030 100 S06 | $24.40 |
| D3*15FL*100 OAL*6SH*4F | 4GEM 030 150 S06 | $24.40 |
| D4*15FL*100 OAL*6SH*4F | 4GEM 040 150 S06 | $24.40 |

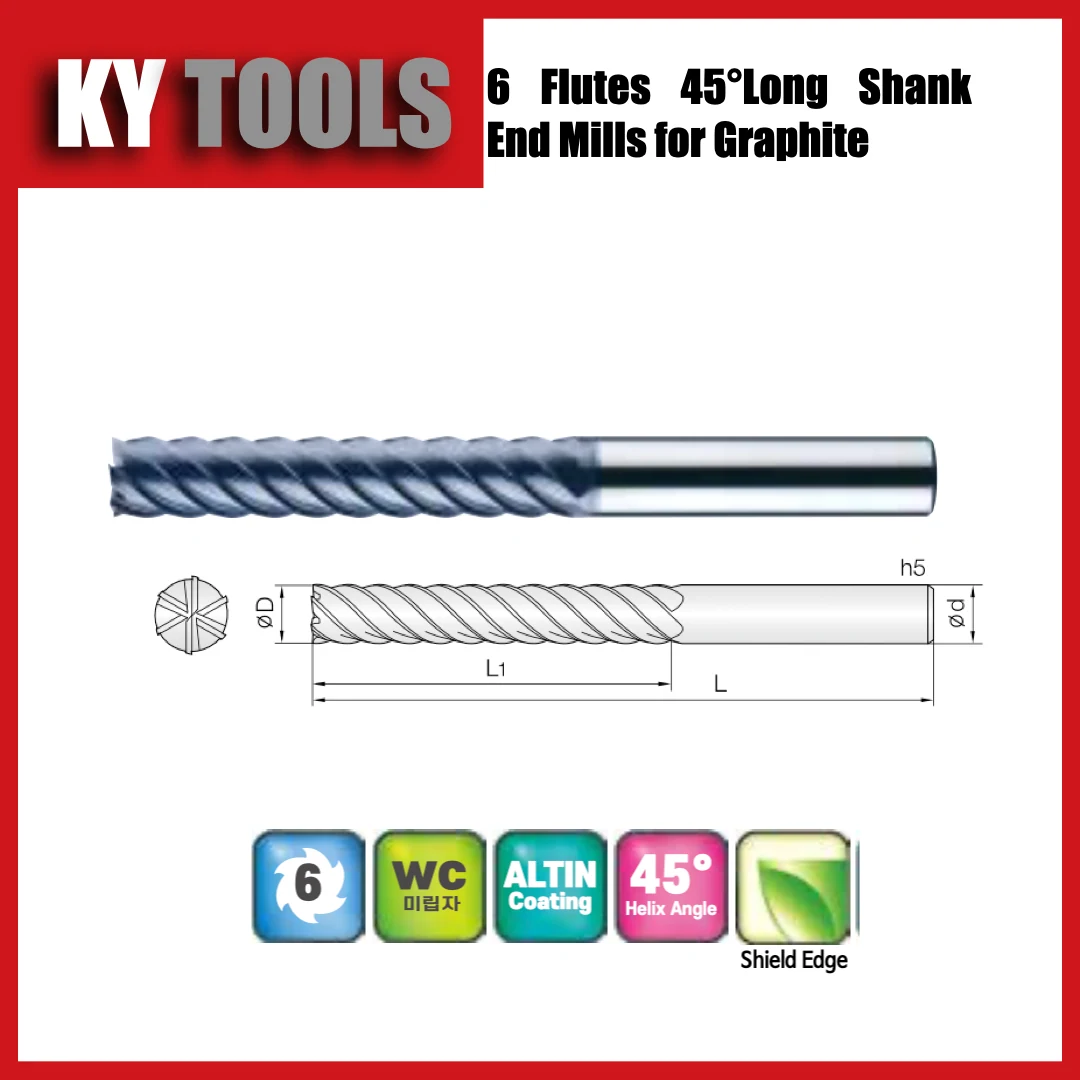

High-speed finishing with reduced vibration and a fine wall finish.
| Specification | Order code | USD/pc |
|---|---|---|
| D6*30FL*110 OAL*6SH*6F | 6GEM 060 300 110 | $29.40 |
| D8*40FL*110 OAL*8SH*6F | 6GEM 080 400 110 | $42.80 |
| D10*50FL*120 OAL*10SH*6F | 6GEM 100 500 120 | $65.80 |

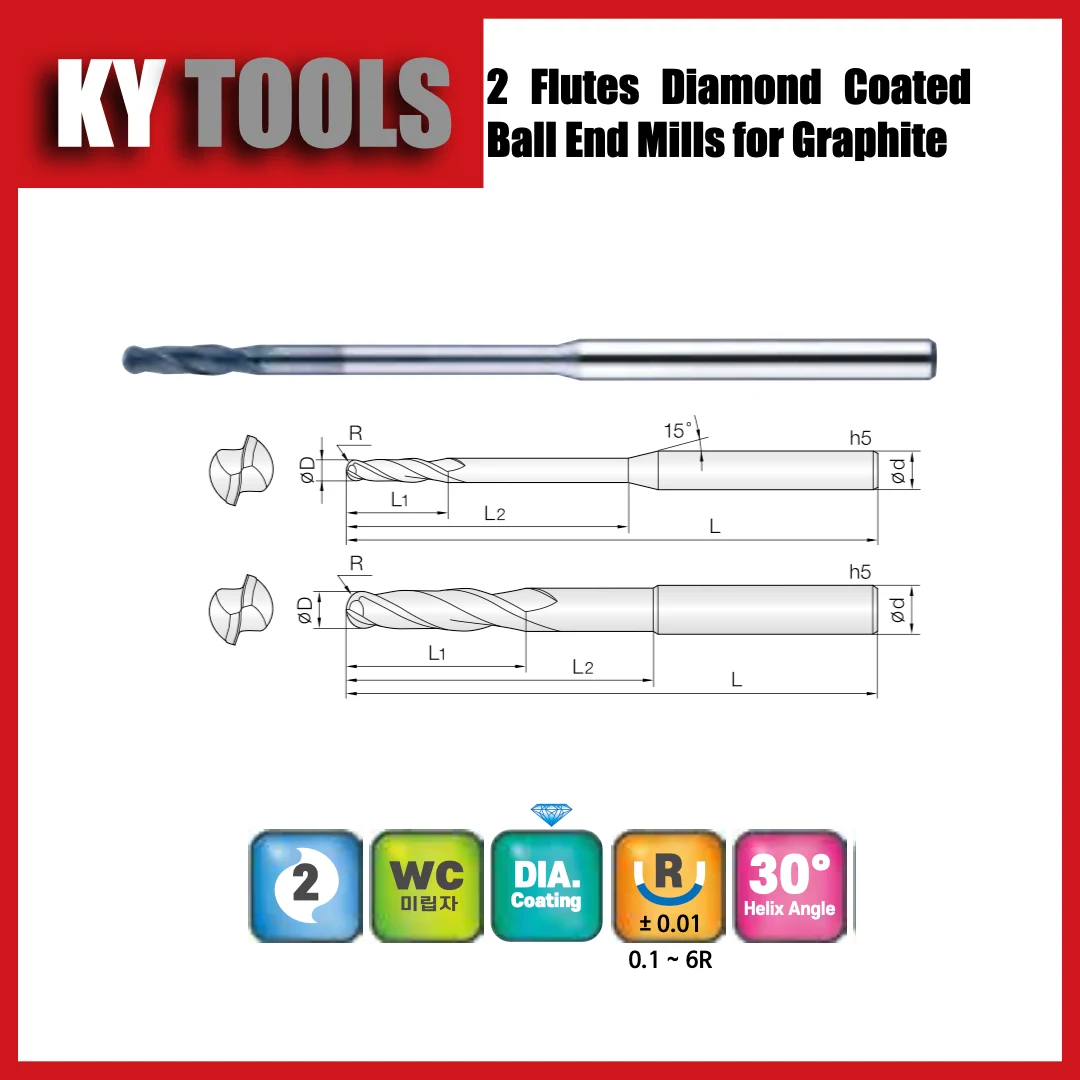

Micro to medium 3D profiling with maximum chip space.
| Specification | Order code | USD/pc |
|---|---|---|
| D0.2*R0.1*1FL*45 OAL*4SH*2F | 2DBE 002 010 S04 | $13.00 |
| D0.3*R0.15*1.2FL*45 OAL*4SH*2F | 2DBE 003 012 S04 | $13.00 |
| D0.3*R0.15*1.2FL*2NL*45 OAL*4SH*2F | 2DBE 003 020 S04 | $13.00 |

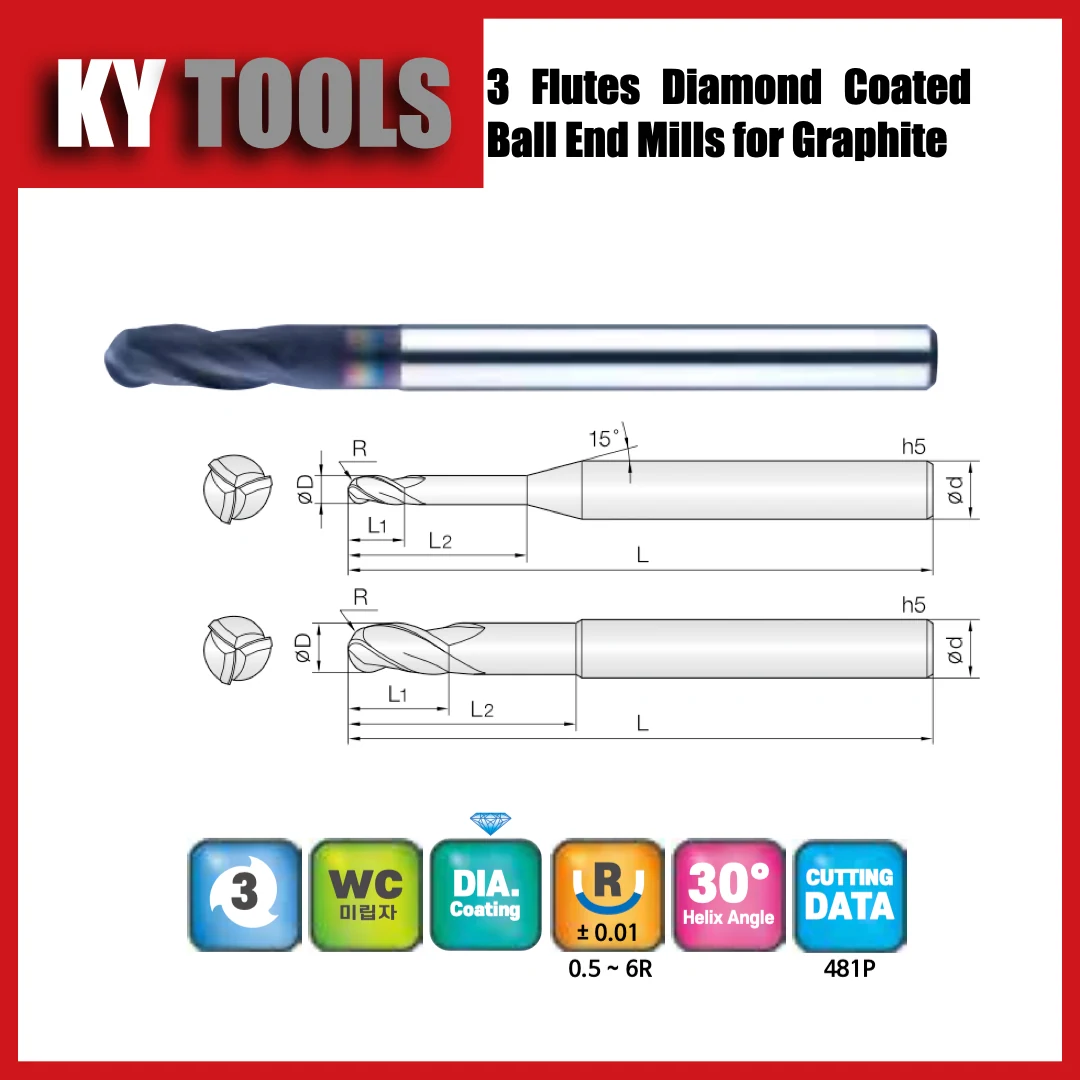

Balanced chip evacuation, rigidity, and finish in 3D electrode work.
| Specification | Order code | USD/pc |
|---|---|---|
| D1*R0.5*3FL*60 OAL*4SH*3F | 3DBE 010 030 S04 | $12.80 |
| D1*R0.5*3FL*5NL*60 OAL*4SH*3F | 3DBE 010 050 S04 | $12.80 |
| D1*R0.5*3FL*10NL*60 OAL*4SH*3F | 3DBE 010 100 S04 | $12.80 |

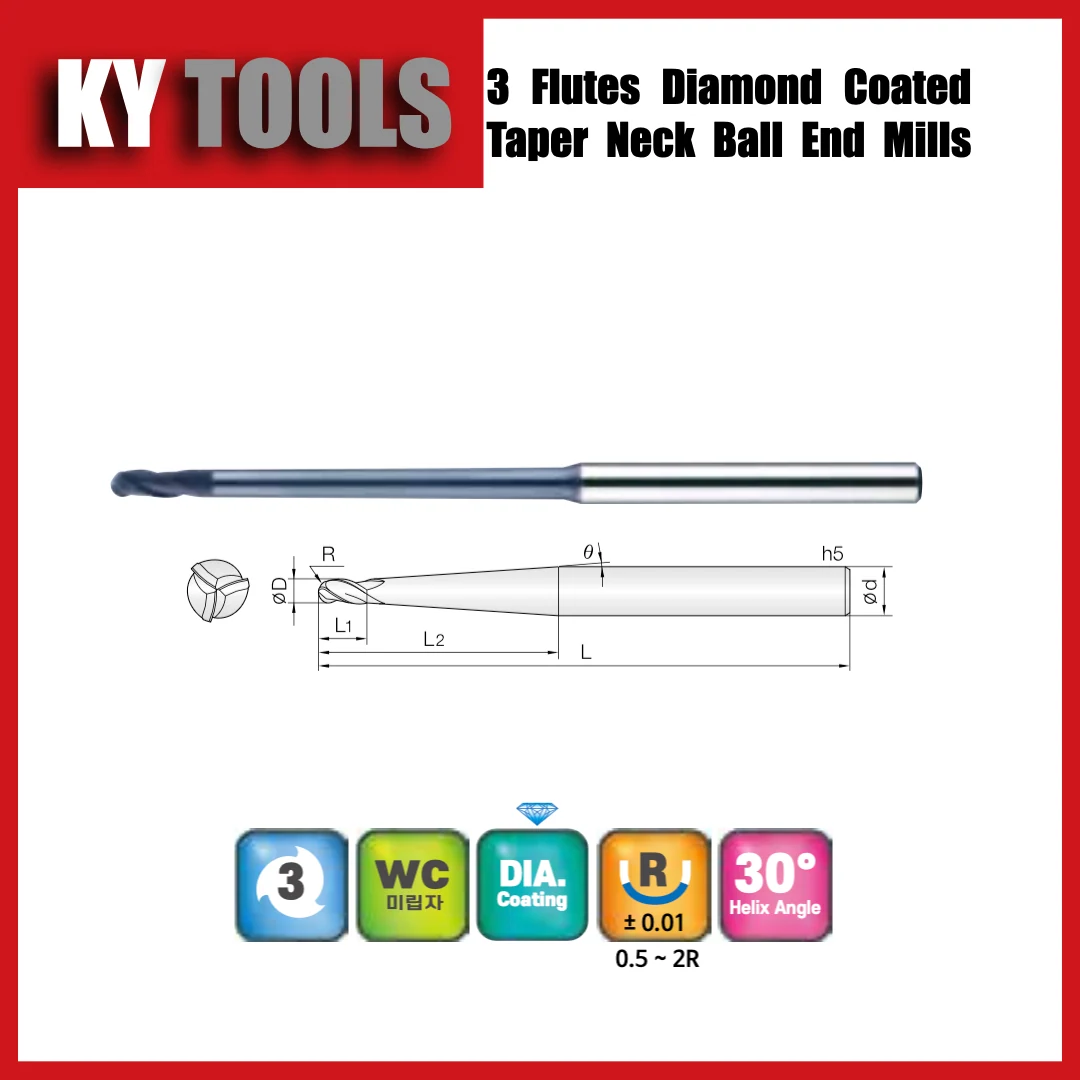

Small-diameter deep-cavity finishing with added neck support.
| Specification | Order code | USD/pc |
|---|---|---|
| D1*R0.5*3FL*30NL*100 OAL*4SH*3F | 3TBD 010 003 300 | $16.80 |
| D1*R0.5*3FL*40NL*100 OAL*4SH*3F | 3TBD 010 003 400 | $19.60 |
| D1*R0.5*3FL*50NL*100 OAL*4SH*3F | 3TBD 010 003 500 | $22.40 |

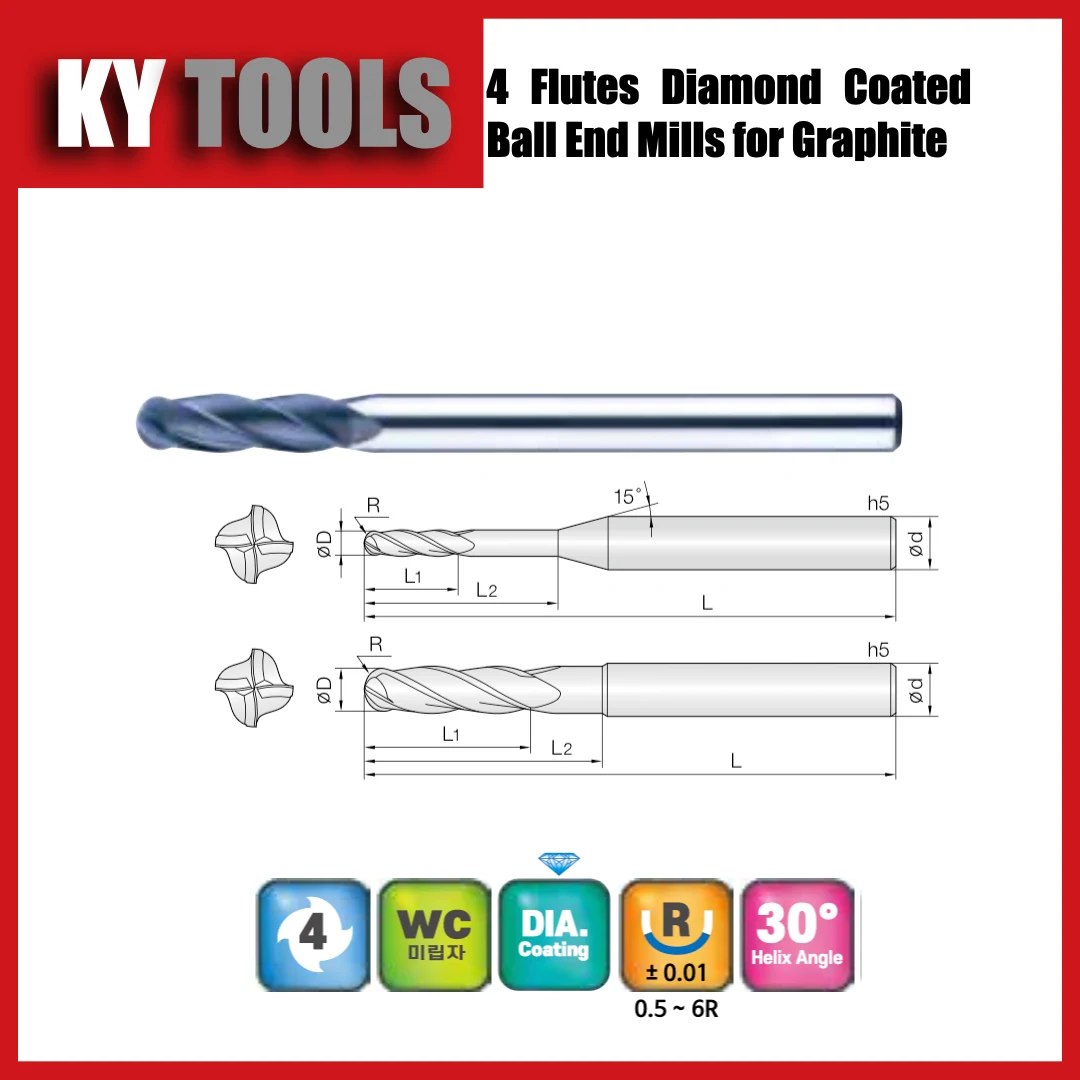

High-feed finishing and smooth 3D surfaces in rigid CNC setups.
| Specification | Order code | USD/pc |
|---|---|---|
| D1*R0.5*3FL*60 OAL*4SH*4F | 4DBE 010 030 S04 | $12.80 |
| D1*R0.5*3FL*5NL*60 OAL*4SH*4F | 4DBE 010 050 S04 | $12.80 |
| D1*R0.5*3FL*10NL*60 OAL*4SH*4F | 4DBE 010 100 S04 | $12.80 |

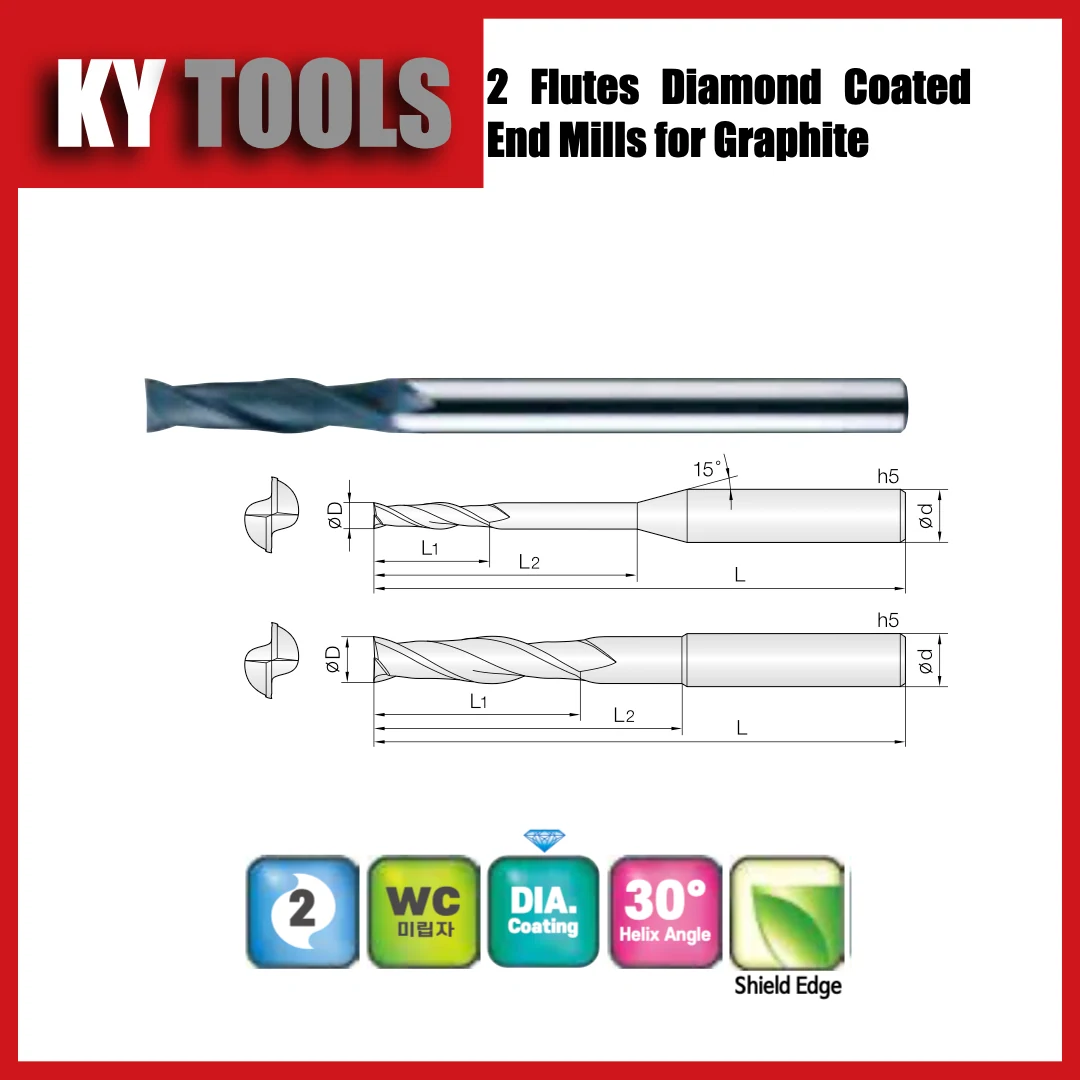

Plunge-capable slots, pockets, edges, and roughing with open chip space.
| Specification | Order code | USD/pc |
|---|---|---|
| D0.2*0.4FL*45 OAL*4SH*2F | 2DEM 002 004 S04 | $13.00 |
| D0.3*0.6FL*45 OAL*4SH*2F | 2DEM 003 006 S04 | $13.00 |
| D0.3*0.6FL*2NL*45 OAL*4SH*2F | 2DEM 003 020 S04 | $13.00 |

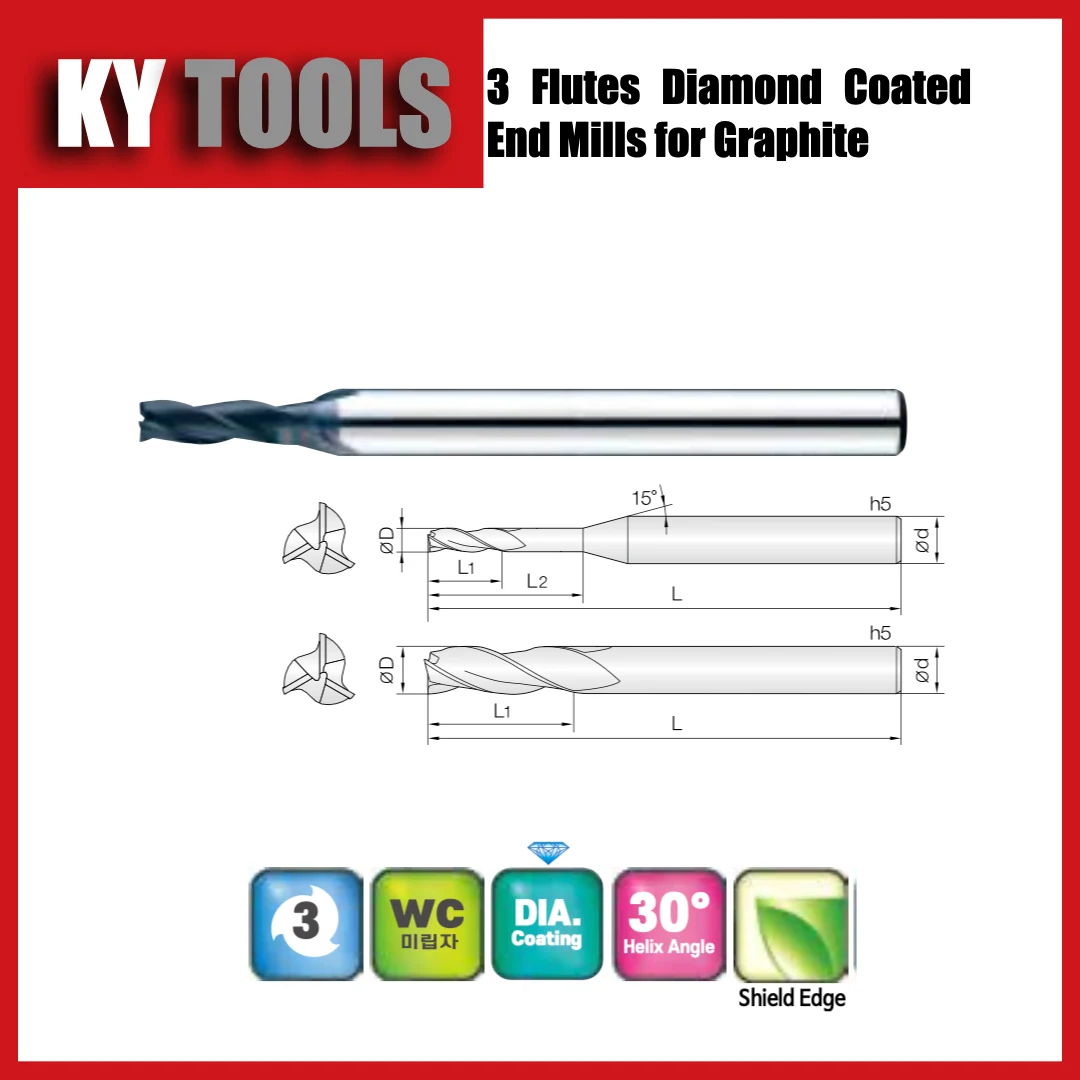

General-purpose graphite pocketing and profiling with balanced stability.
| Specification | Order code | USD/pc |
|---|---|---|
| D1*3FL*45 OAL*4SH*3F | 3DEM 010 030 S04 | $11.80 |
| D1*3FL*5NL*45 OAL*4SH*3F | 3DEM 010 050 S04 | $11.80 |
| D1*3FL*10NL*45 OAL*4SH*3F | 3DEM 010 100 S04 | $11.80 |

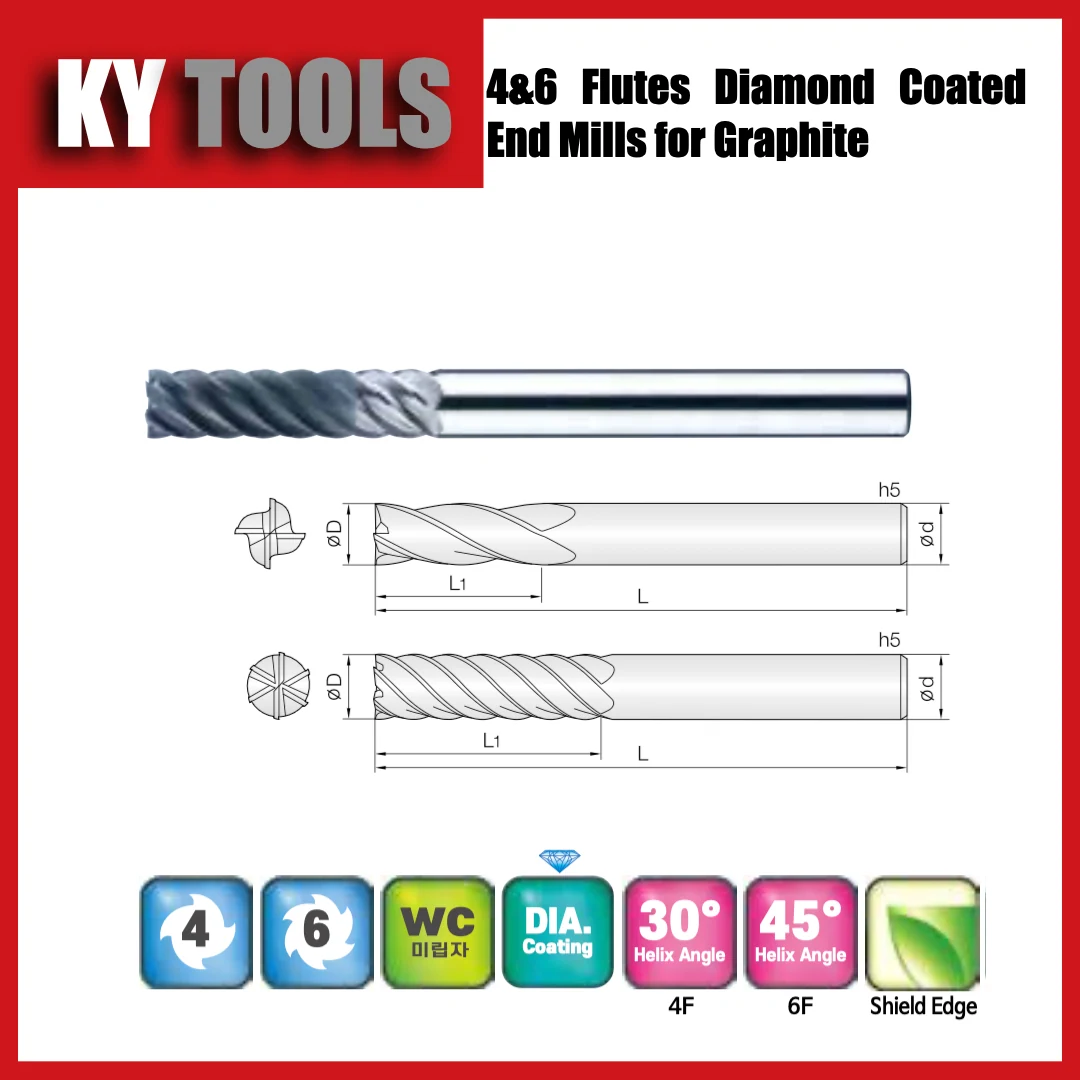

High-speed finishing, low vibration, and fine square-bottomed features.
| Specification | Order code | USD/pc |
|---|---|---|
| D2*6FL*45 OAL*4SH*4F | 4DEM 020 060 S04 | $11.80 |
| D2*10FL*60 OAL*4SH*4F | 4DEM 020 100 S04 | $12.80 |
| D3*9FL*50 OAL*6SH*4F | 4DEM 030 090 S06 | $18.00 |

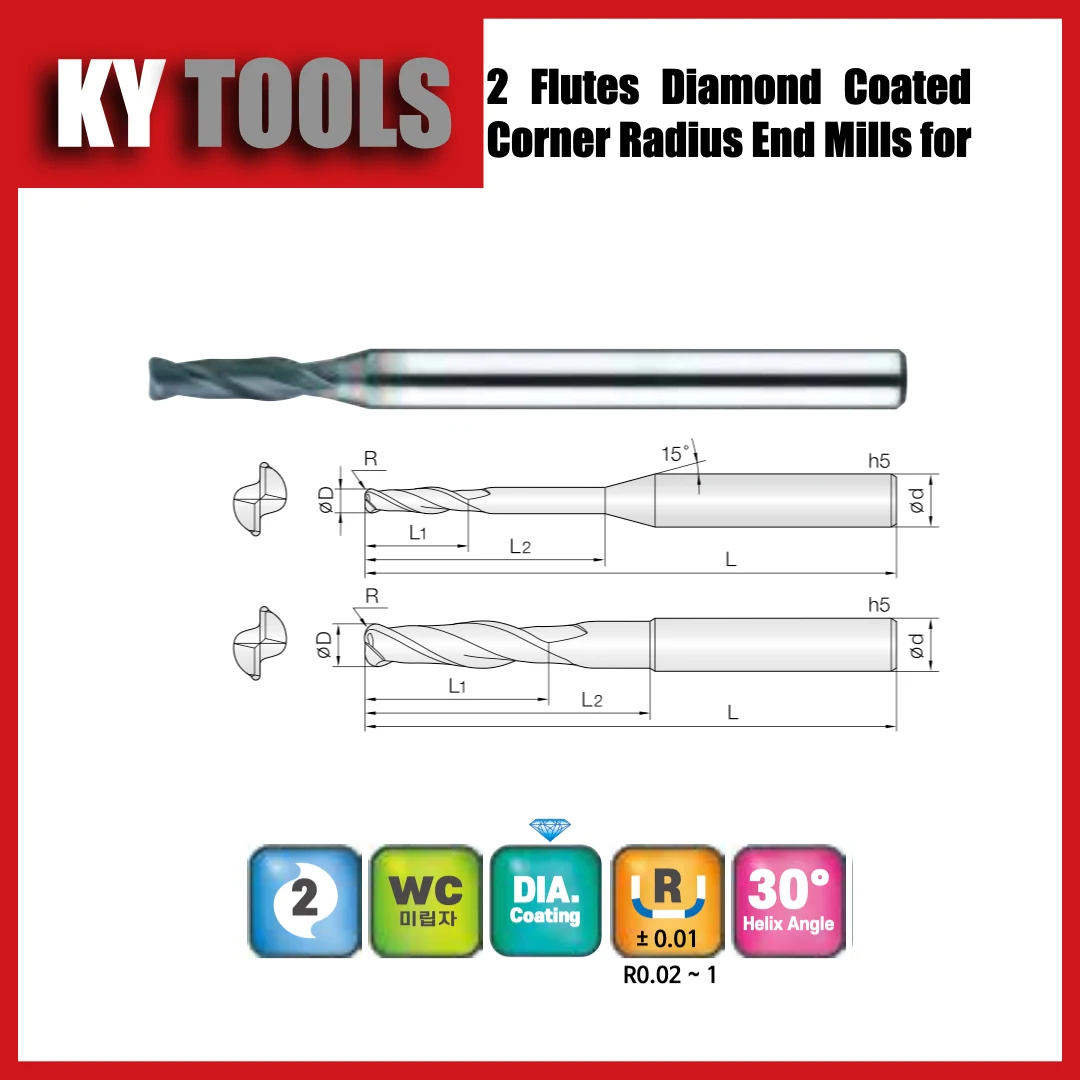

Reinforced corners, small fillets, and rough-to-semi-finish electrode milling.
| Specification | Order code | USD/pc |
|---|---|---|
| D0.2*R0.02*0.5FL*1.5NL*60 OAL*4SH*2F | 2DCR 002 0002 015 | $14.00 |
| D0.3*R0.02*0.6FL*1.5NL*60 OAL*4SH*2F | 2DCR 003 0002 015 | $14.00 |
| D0.3*R0.02*0.6FL*3NL*60 OAL*4SH*2F | 2DCR 003 0002 030 | $14.00 |

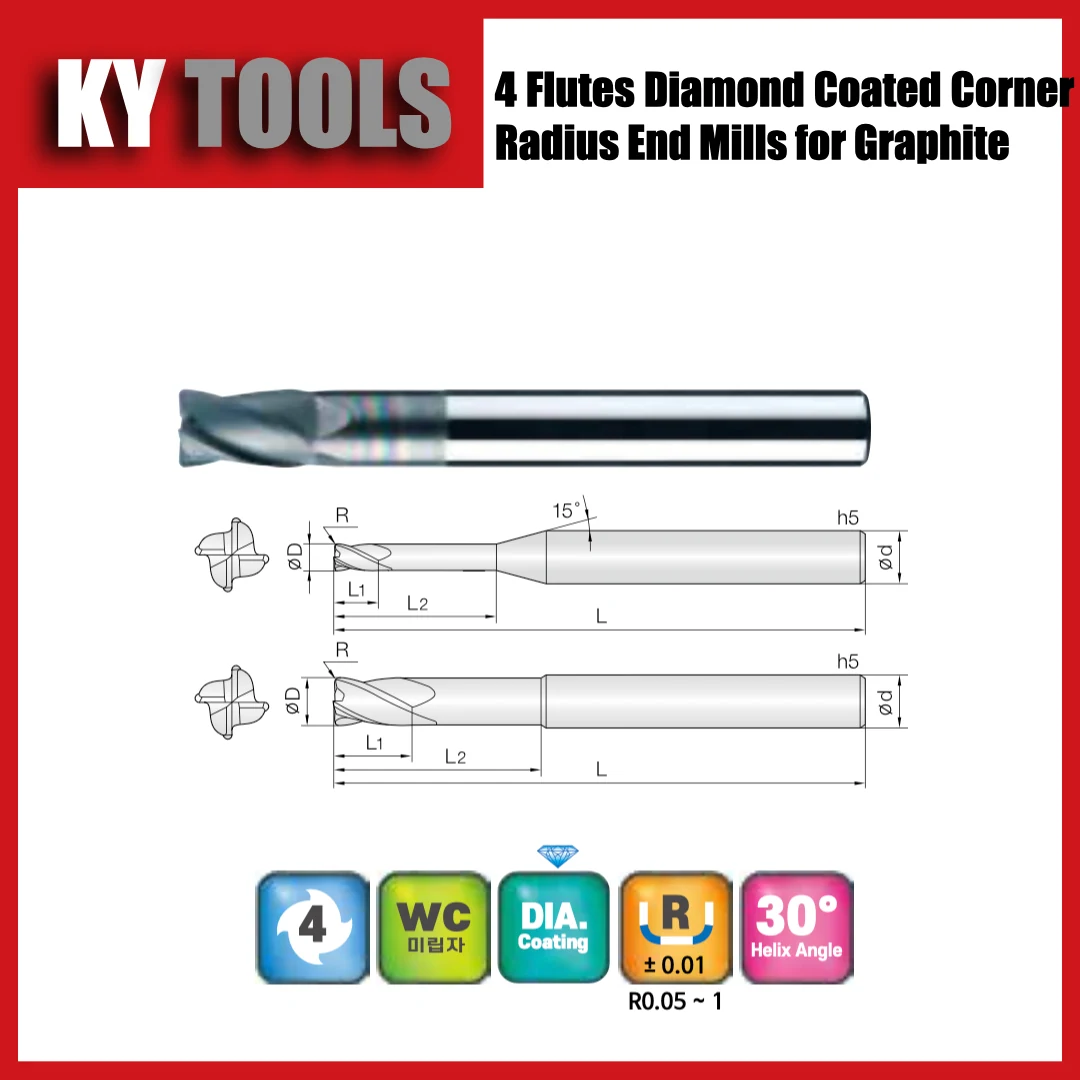

Stable finishing of radiused shoulders, pockets, and electrode walls.
| Specification | Order code | USD/pc |
|---|---|---|
| D2*R0.05*3.5FL*60 OAL*4SH*4F | 4DCR 020 0005 035 | $12.80 |
| D2*R0.05*3.5FL*6NL*60 OAL*4SH*4F | 4DCR 020 0005 060 | $12.80 |
| D2*R0.05*3.5FL*12NL*60 OAL*4SH*4F | 4DCR 020 0005 120 | $12.80 |
We use a carbide rod grade selected for compatibility with diamond deposition, helping create a dense coating and a strong coating-to-substrate interface.
Use 2 flutes for maximum chip room and roughing; 3 flutes for a balance of clearance and rigidity; 4–6 flutes for stable high-speed finishing in a rigid setup.
Diamond-coated carbide is suitable for many abrasive composites, but composite geometry can differ from graphite geometry. Share the laminate, thickness, operation, and delamination limits for selection.
Yes. Every end mill is dimensionally inspected, and a report can be supplied for order acceptance and traceability.
Abrasive-material machining
A diamond or diamond-like coating protects the sharp carbide edge against abrasive wear. The solid carbide substrate delivers rigidity and finish quality beyond high-speed steel or cobalt tooling, while the coating supports longer production runs and fewer tool changes.
Carbide and diamond coatings are extremely hard but brittle. Control tool runout, workholding, overhang, and entry strategy to reduce chipping or breakage.
Fewer flutes leave more chip space for plunging, slotting and roughing. More flutes improve stability and finish at high spindle speed when chip evacuation is controlled.
In suitable graphite applications, diamond-coated carbide can run faster and last up to 30× longer than conventional carbide. Actual results depend on graphite grade, machine rigidity, toolpath, and cutting parameters.
Attach a drawing or existing tool code, diameter list, coating requirement, work material/graphite grade, and annual quantity. We will confirm the closest standard series or propose an OEM geometry.
Request a graphite tool quote
